Switch box 5.5 kW 3-phase

Switch box 5.5 kW 3-phase

€295,00 EUR
€295,00 EUR
Sale Ausverkauft
Versand wird beim Checkout berechnet

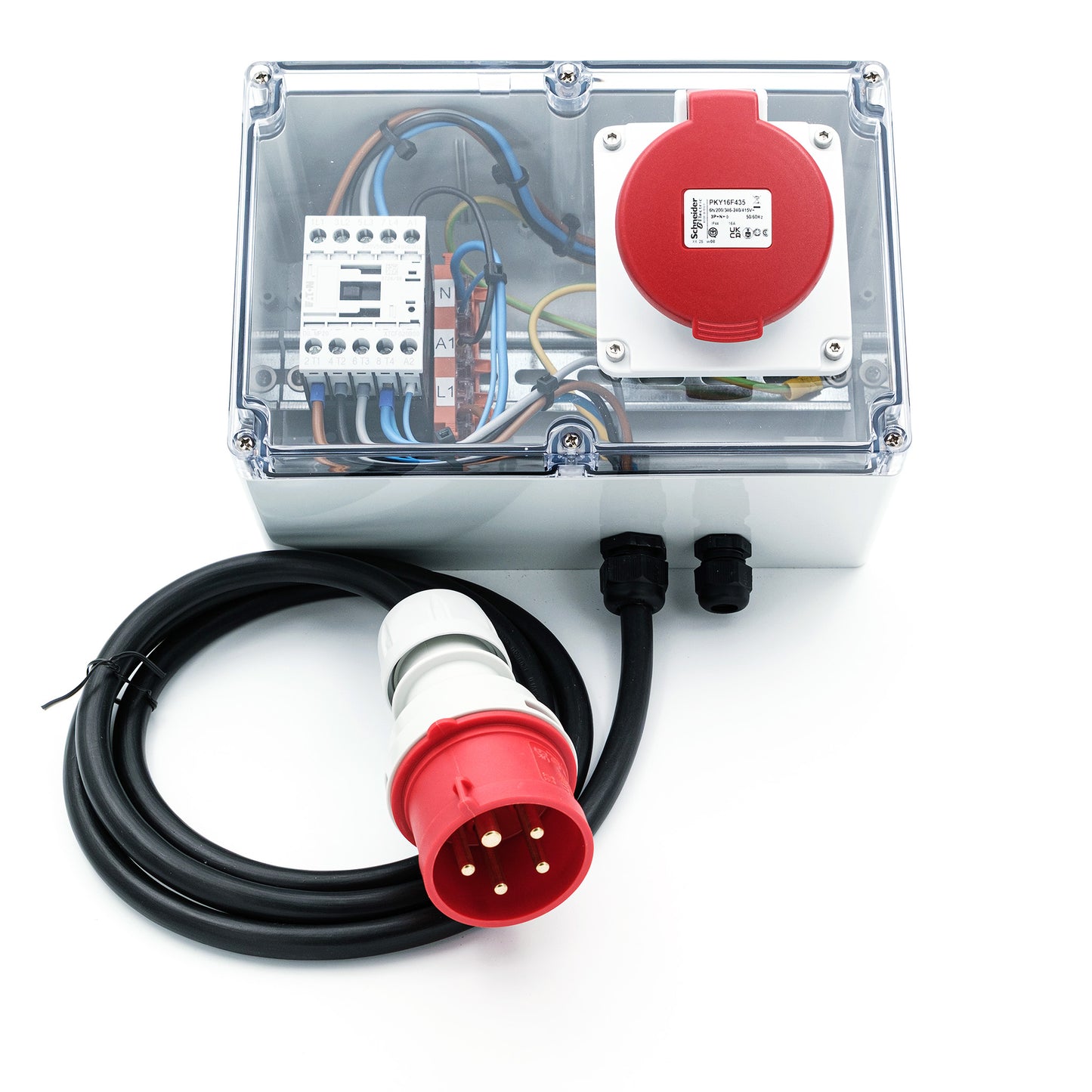

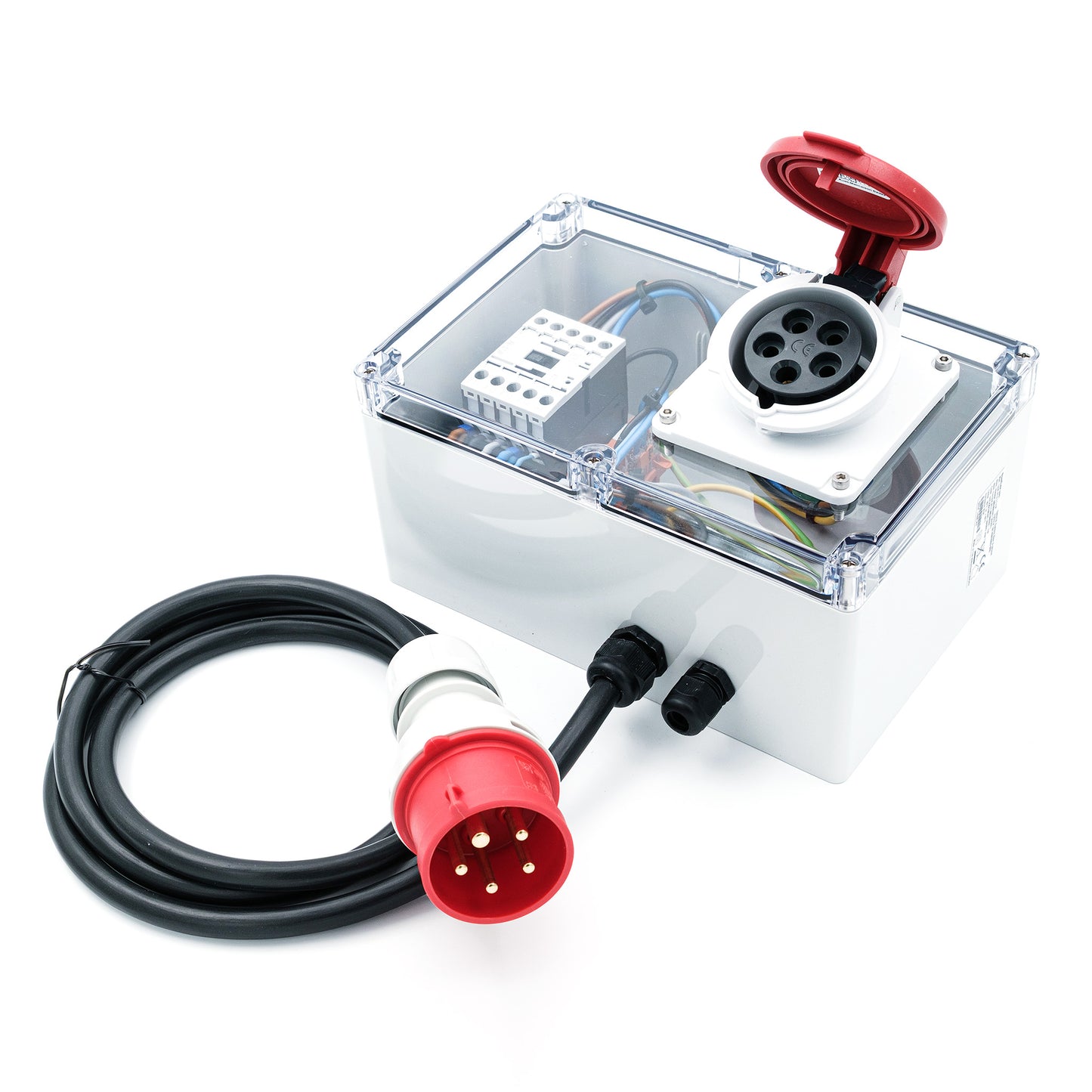

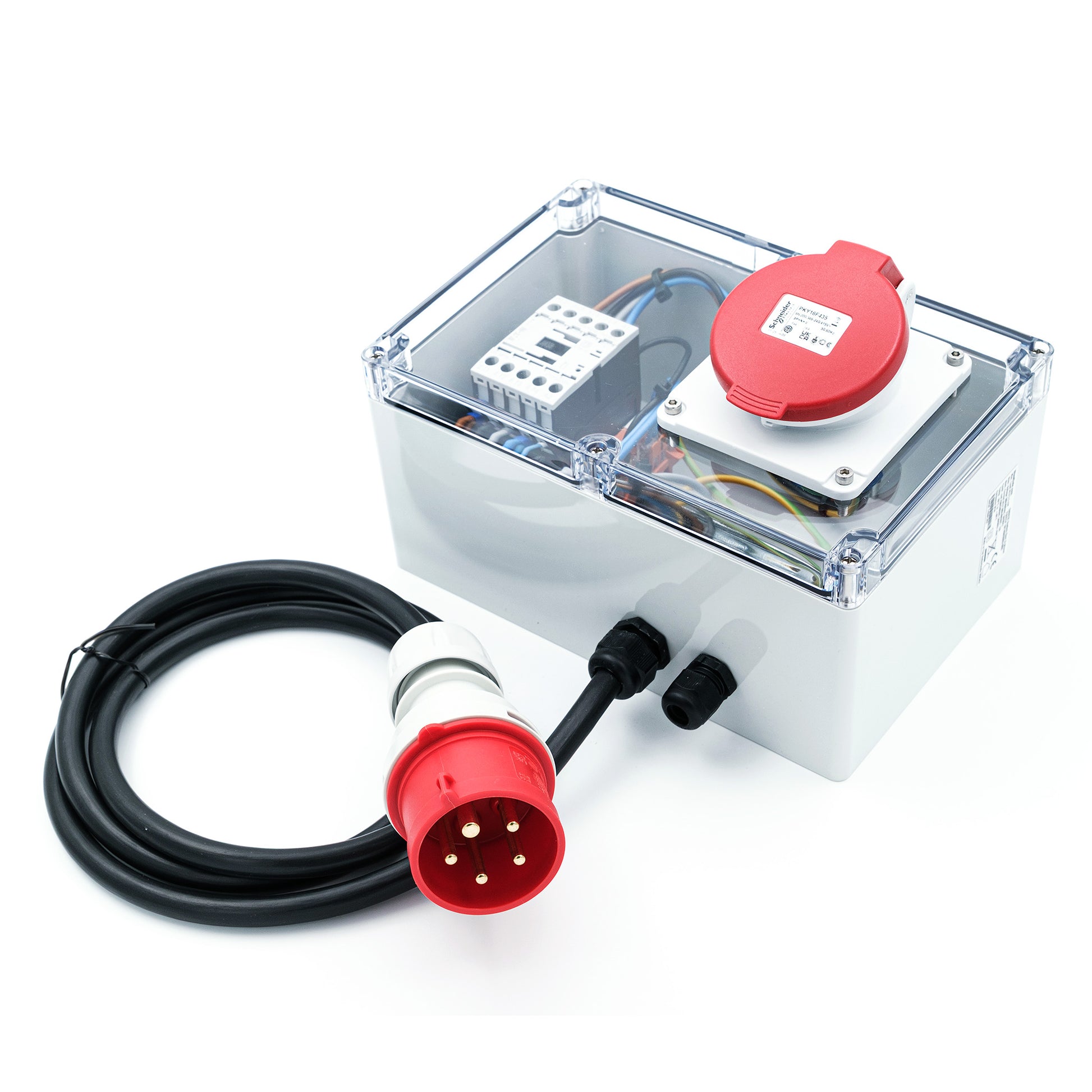

High load switch box for activating a dust collector with a 3-phase mains supply.  Maximum load of the switch box is 5.5 kW  AC-3 load.

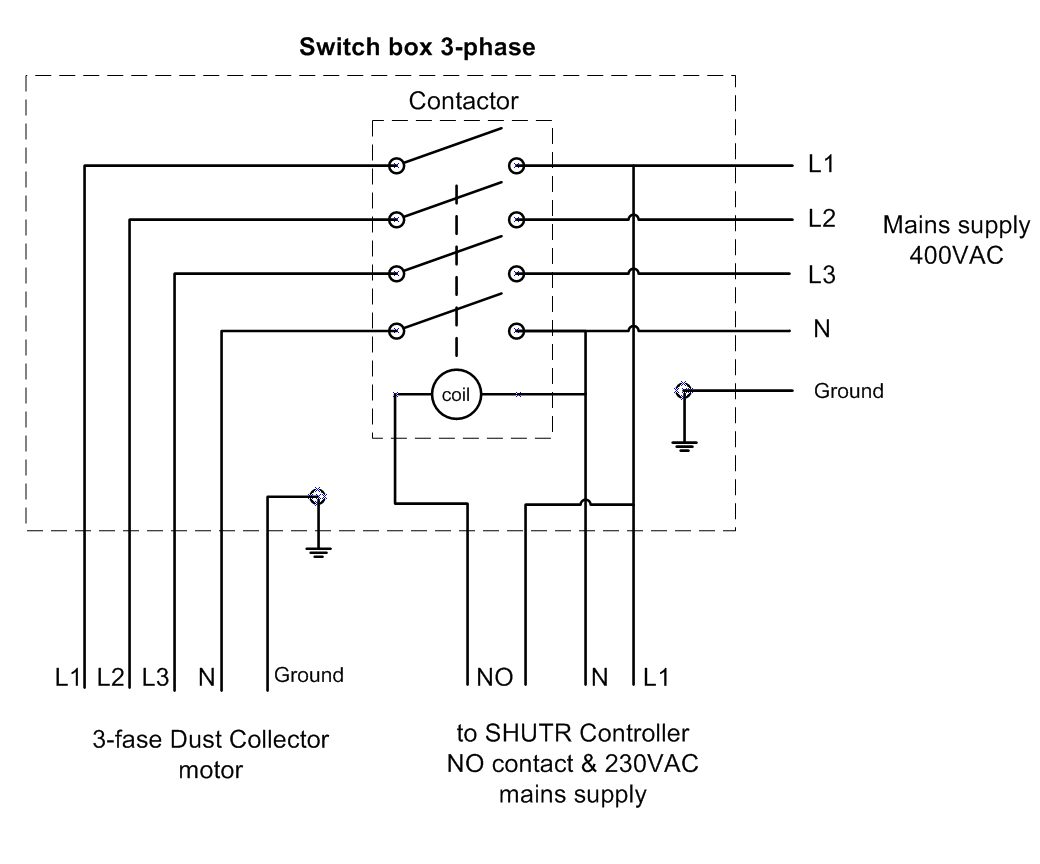

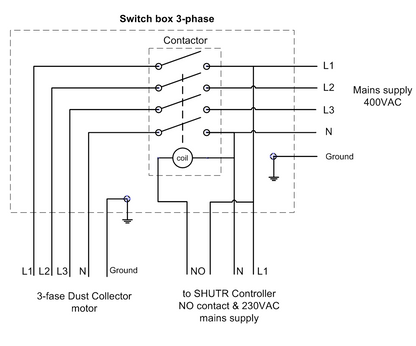

The switch box contains a contactor which is directly controlled by the SHUTR controller (not included, order separately).

Comes with a 3-fase cable (1 mtr) with CEE plug (16A) and a CEE receptacle on the switch box.

Vollständige Details anzeigen

Switch box application

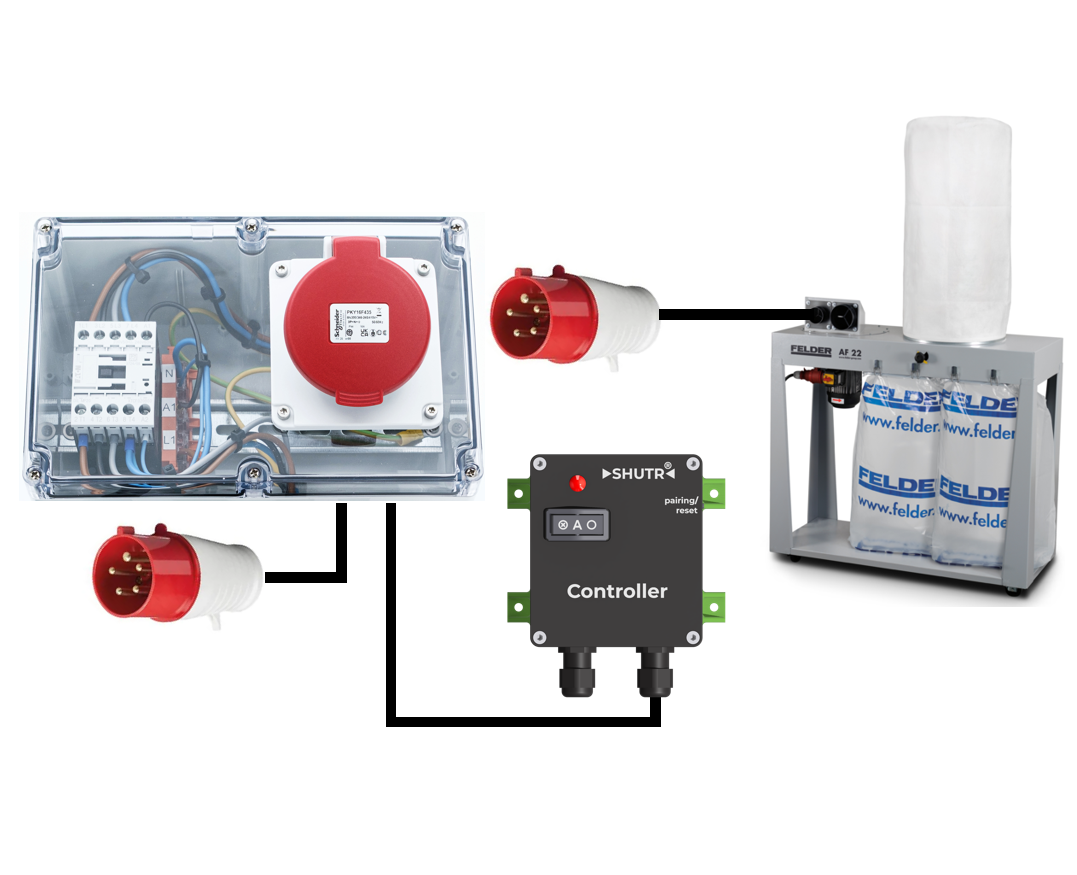

Use the Switch box when your dust collector has no magnetic switch, or no facility to switch it on with a potential free contact.

Plug your dust collector in the Switch box and the Switch box plugs into the outlet.

Switch box 3-phase specifications

  • Suitable for switching 380-400V AC, 16 A
  • Maximum load 5.5kW
  • Switches L1, L2, L3 and N (neutral)
  • Coil 230V AC
  • MTBF 10,000,000 switch actions
  • Usage category: AC-3 , normal induction motors
  • Working temperature -25°C -to 40 °C
  • CE Compliant
  • Housing IP44
