Switch box application
Use the Switch box when your dust collector has no magnetic switch, or no facility to switch it on with a potential free contact.
Plug your dust collector in the Switch box and the Switch box plugs into the outlet.

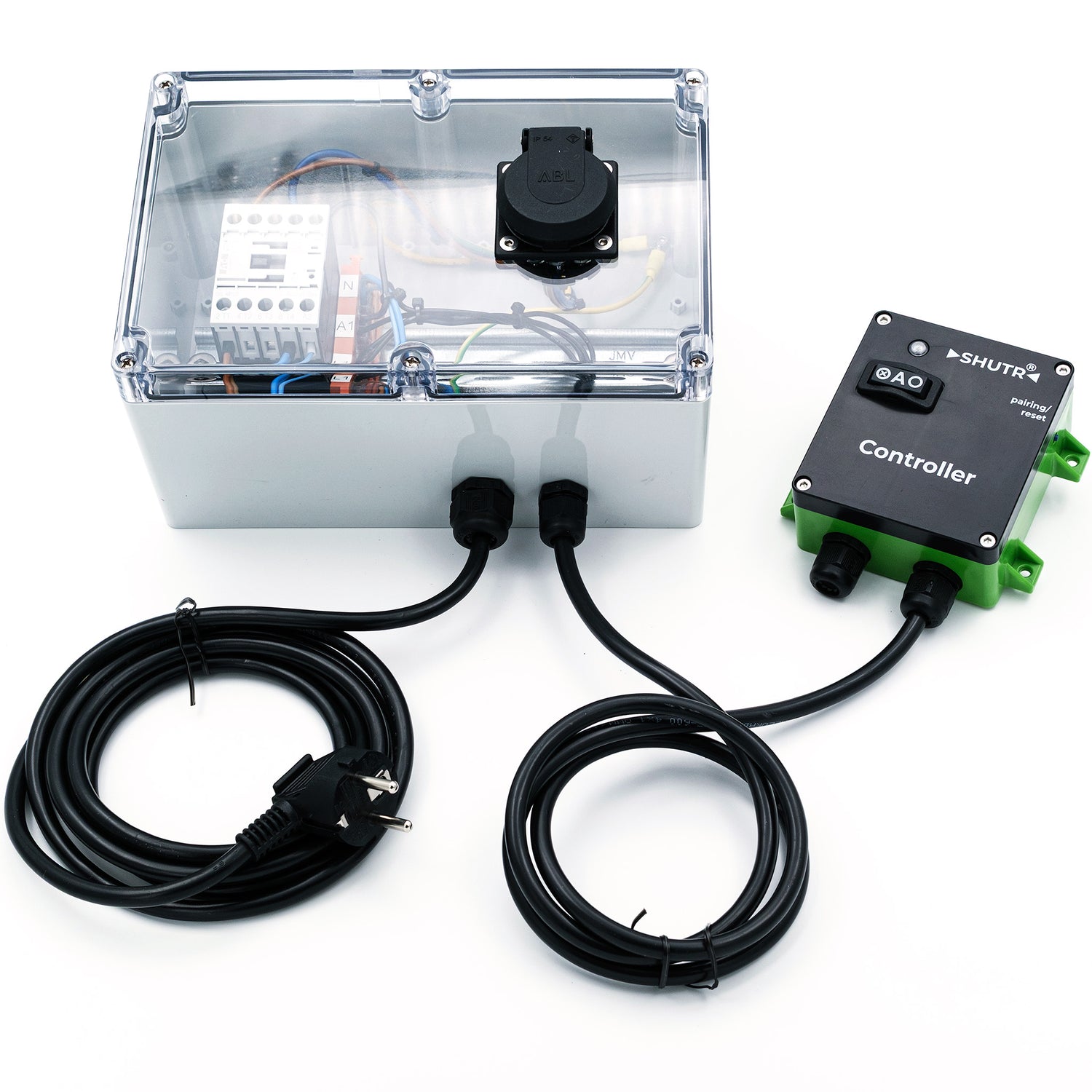

Controller connection
The wireless SHUTR Controller detects if any of the SHUTR components in the network is activated and will in its turn activate the Switch box accordingly.
The Controller receives its power from the Switch box.
Switch box specifications

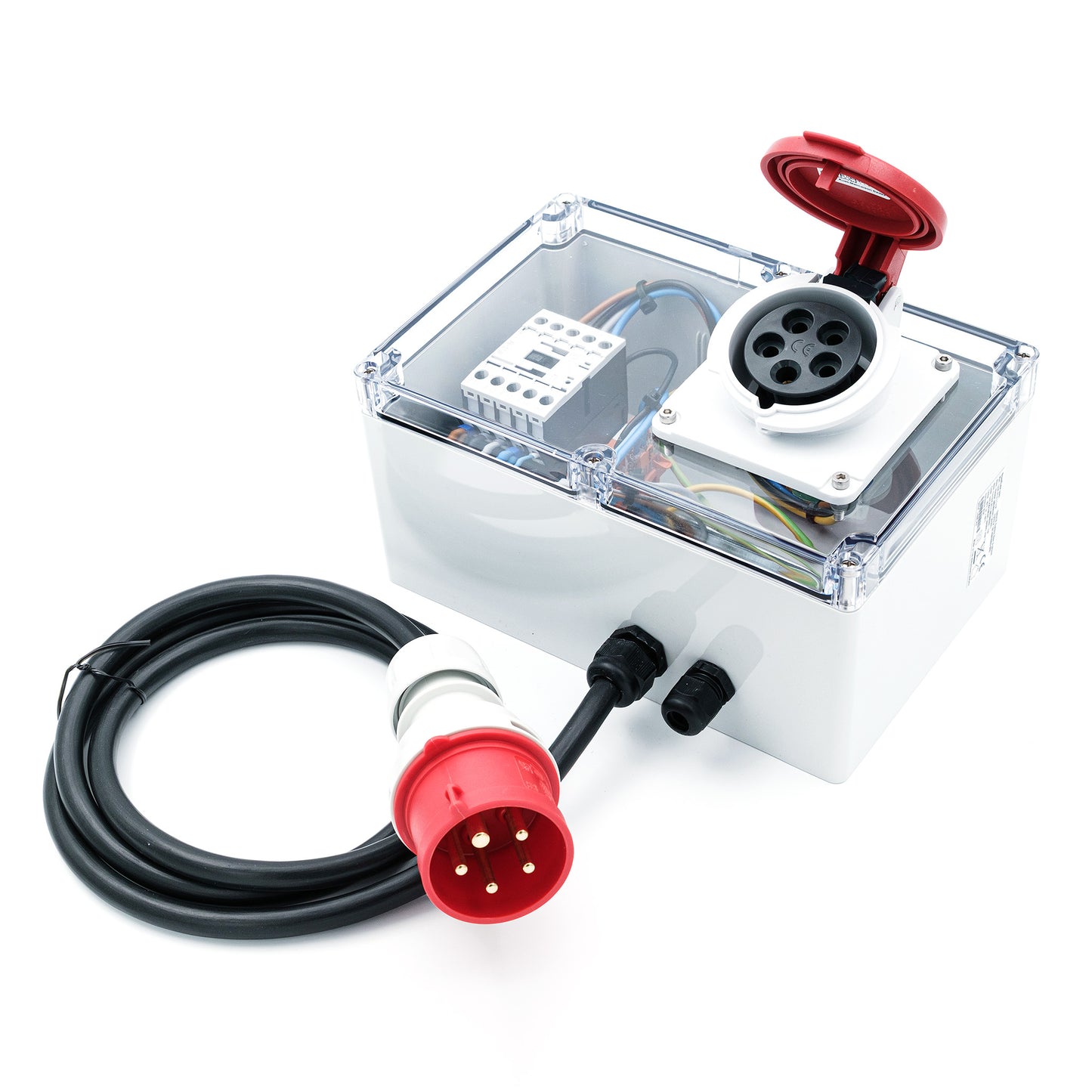

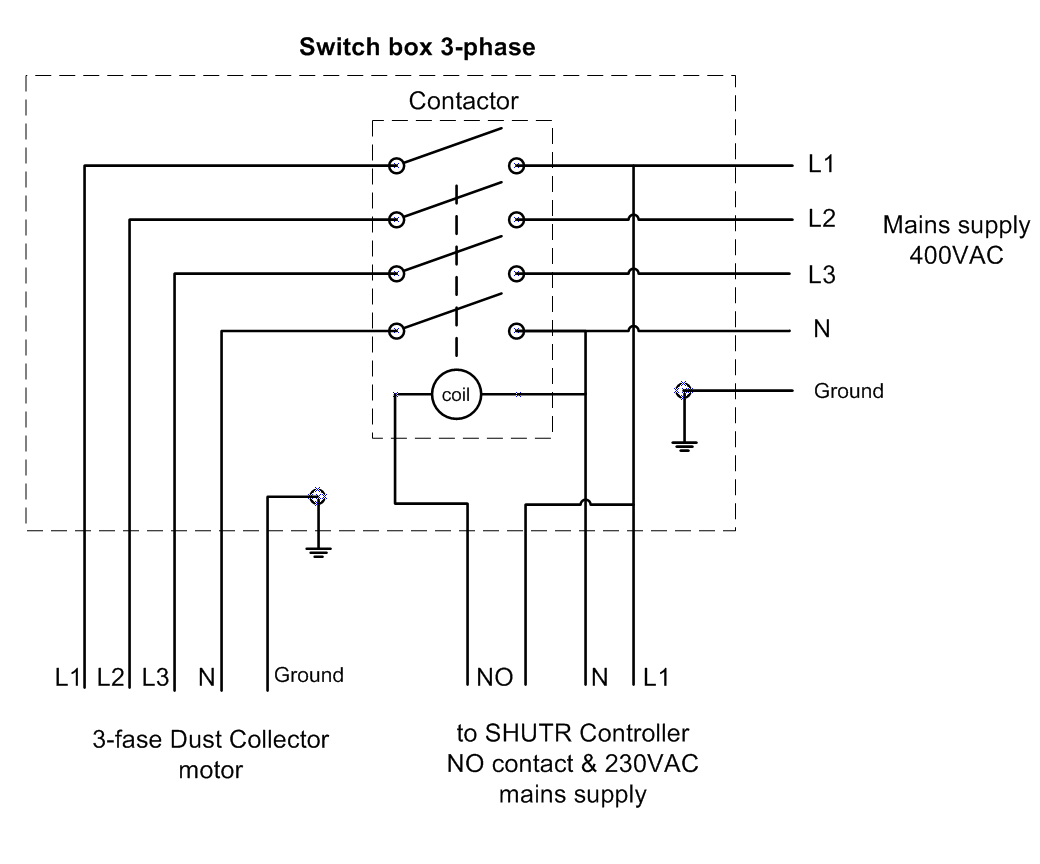

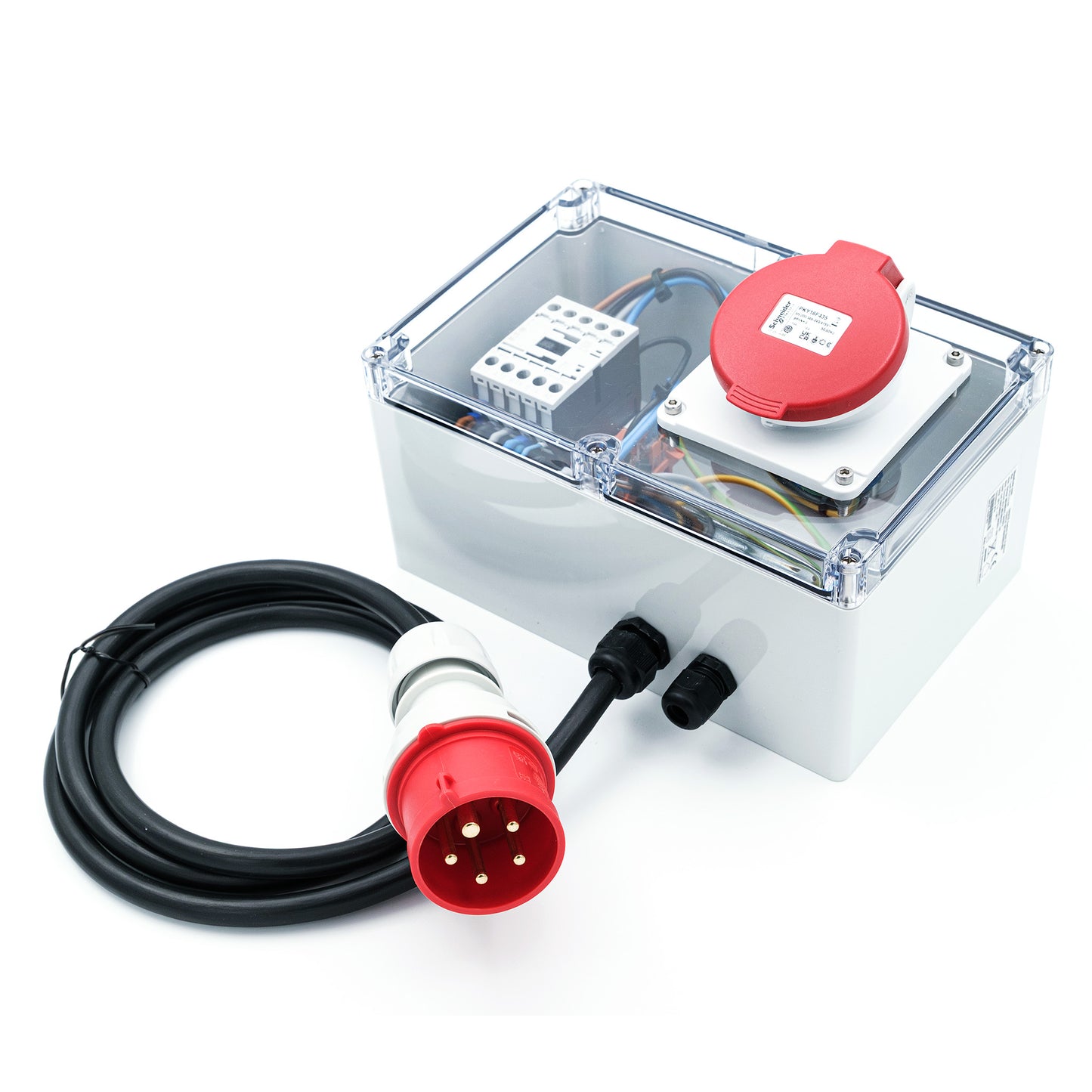

- 3-phase model: 380-400VAC, 16 A, 5.5kW max

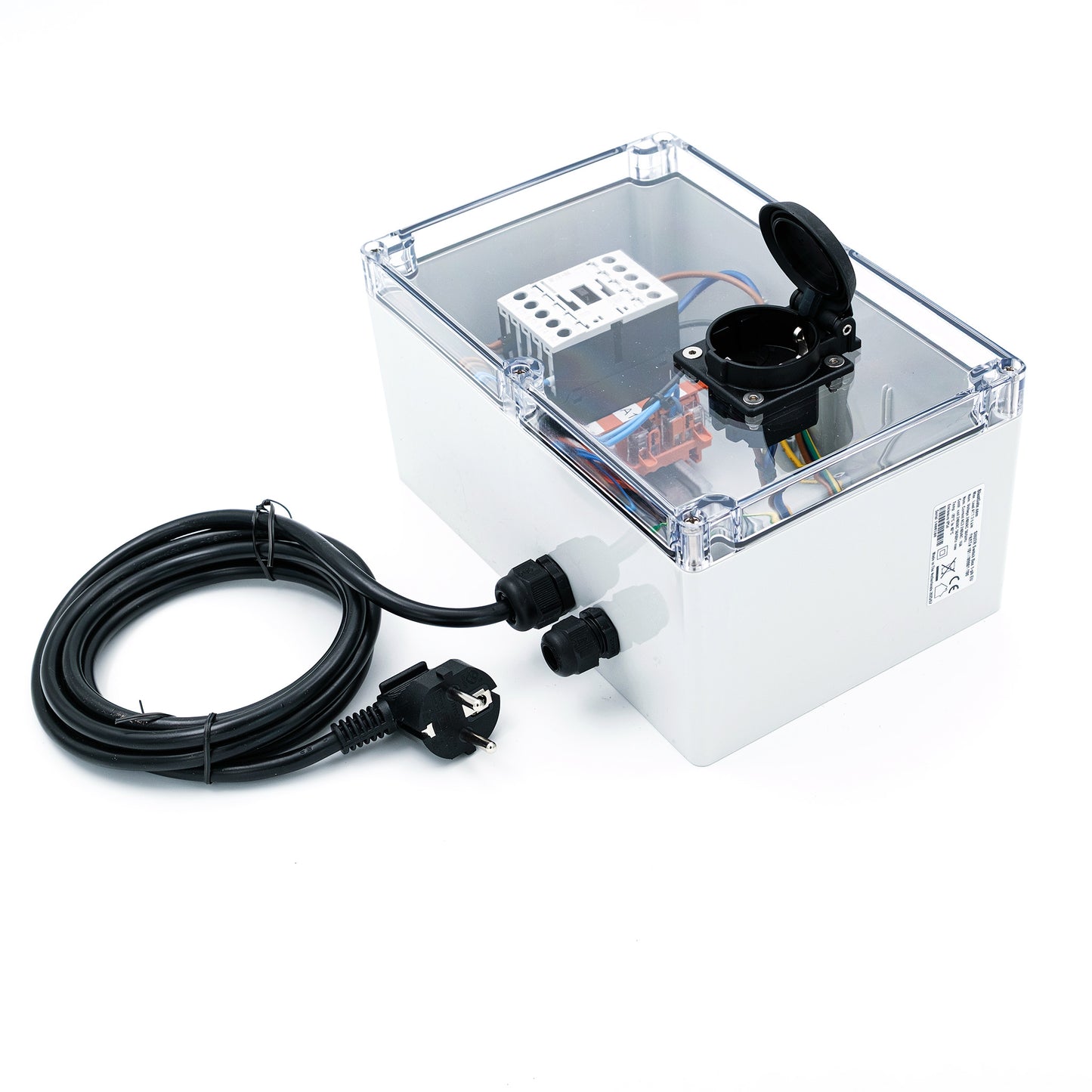

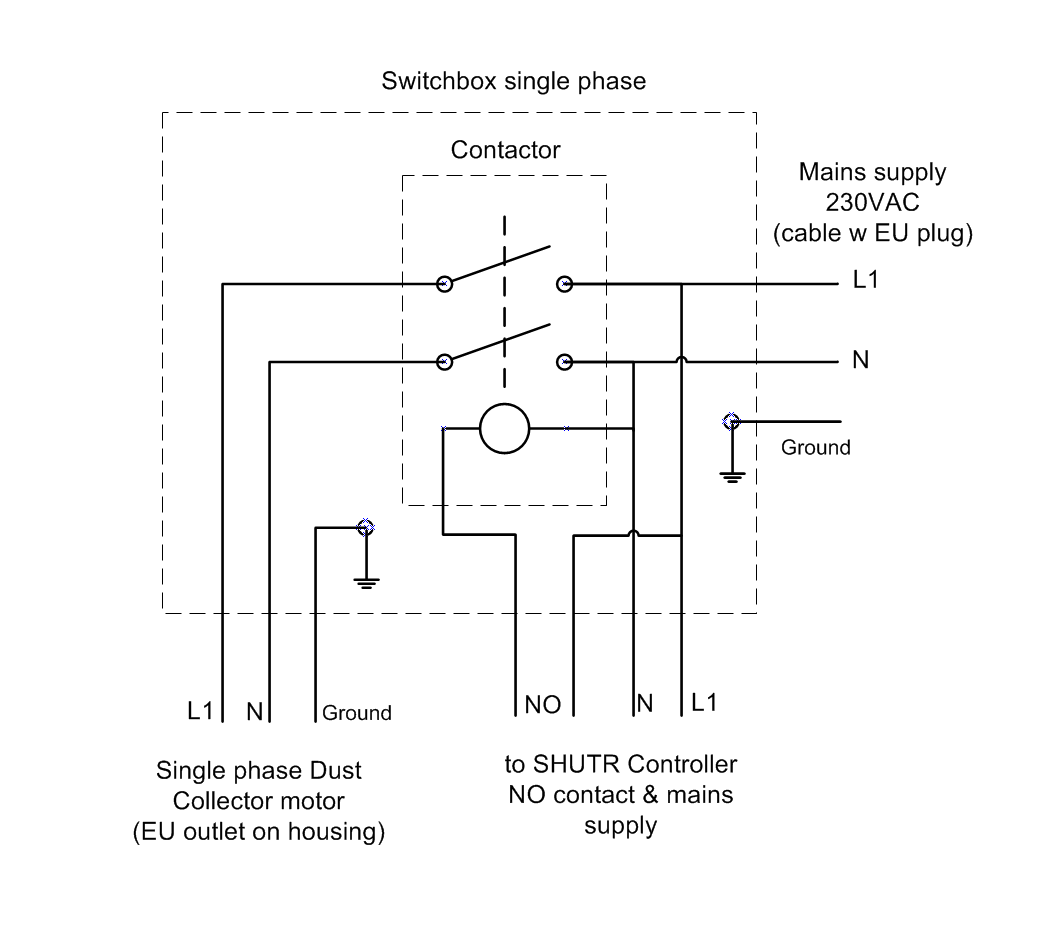

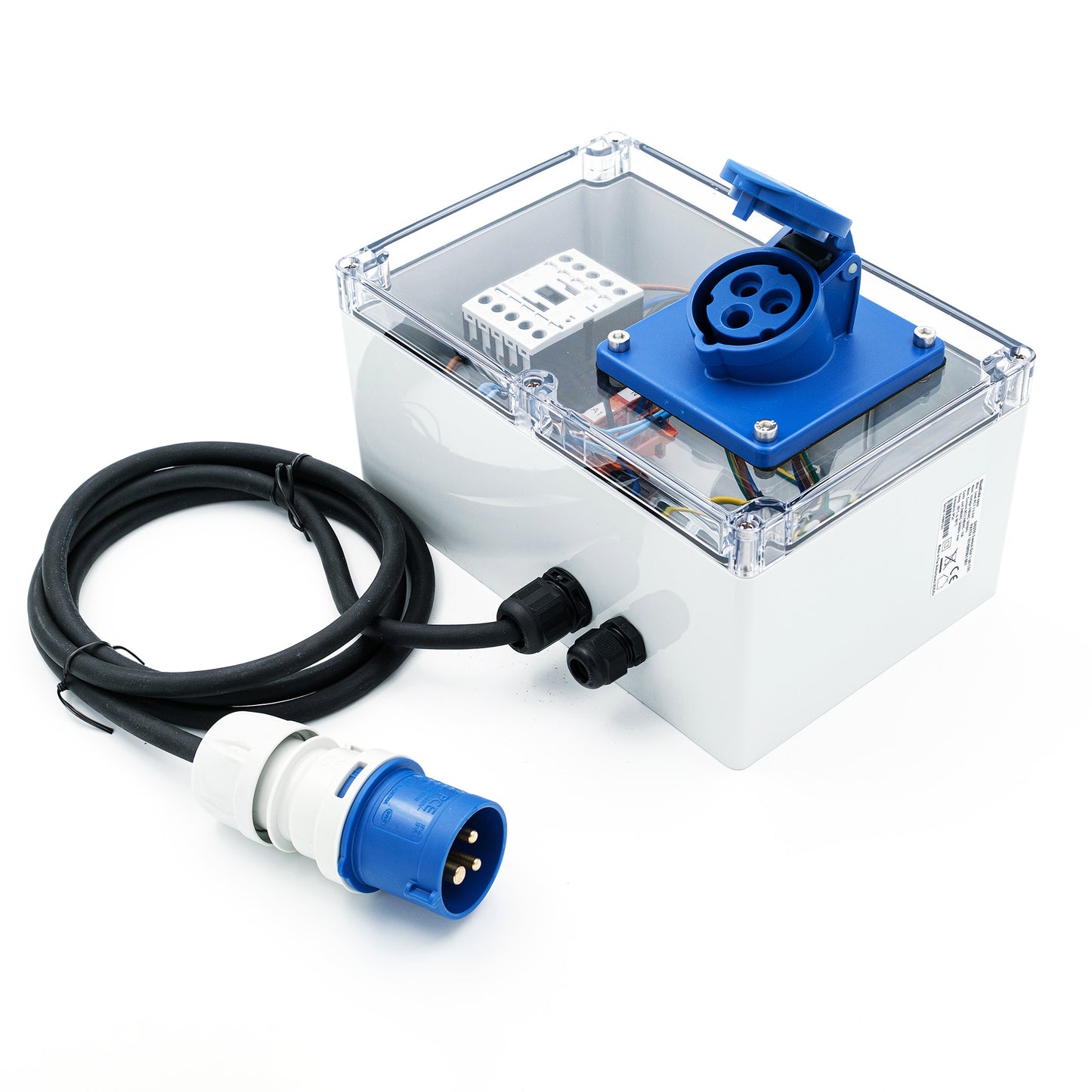

- 1-phase model: 230VAC, 16 A, 3.6kW max

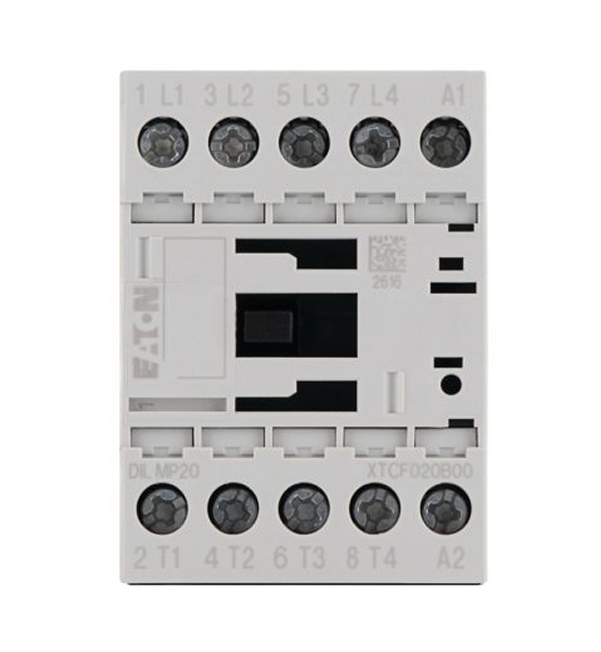

- Switches L1, L2, L3 and N (neutral)
- Coil 230V AC
- MTBF 10,000,000 switch actions
- Usage category: AC-3 , normal induction motors
- Working temperature -25°C -to 40 °C
- CE Compliant
- Housing IP44 (3-phase), IP54 (1-phase)
