Switch box 3.6 kW single phase EU

Switch box 3.6 kW single phase EU

€285,00 EUR
€285,00 EUR
Introductory price Sold out
Shipping costs are calculated at checkout.

High load switch box for activating a dust collector with a  single phase mains supply 230V AC.  Maximum load of the switch box is 3.6 kW  AC-3 load.

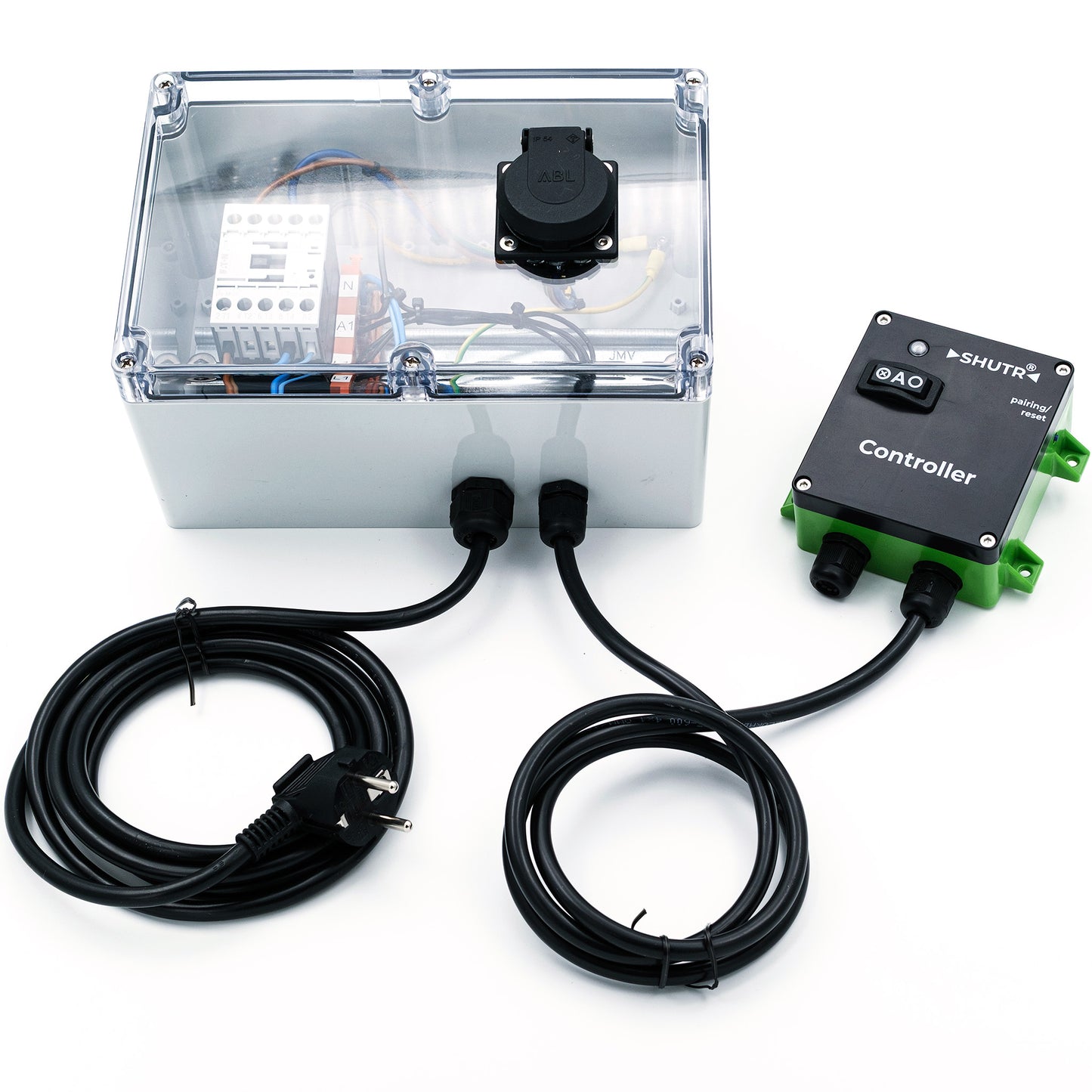

The switch box contains a contactor which is directly controlled by the SHUTR controller (not included, order separately).

Comes with a single phase cable (2 mtr) with EU plug (16A) and EU receptacle on the switch box.

View full details

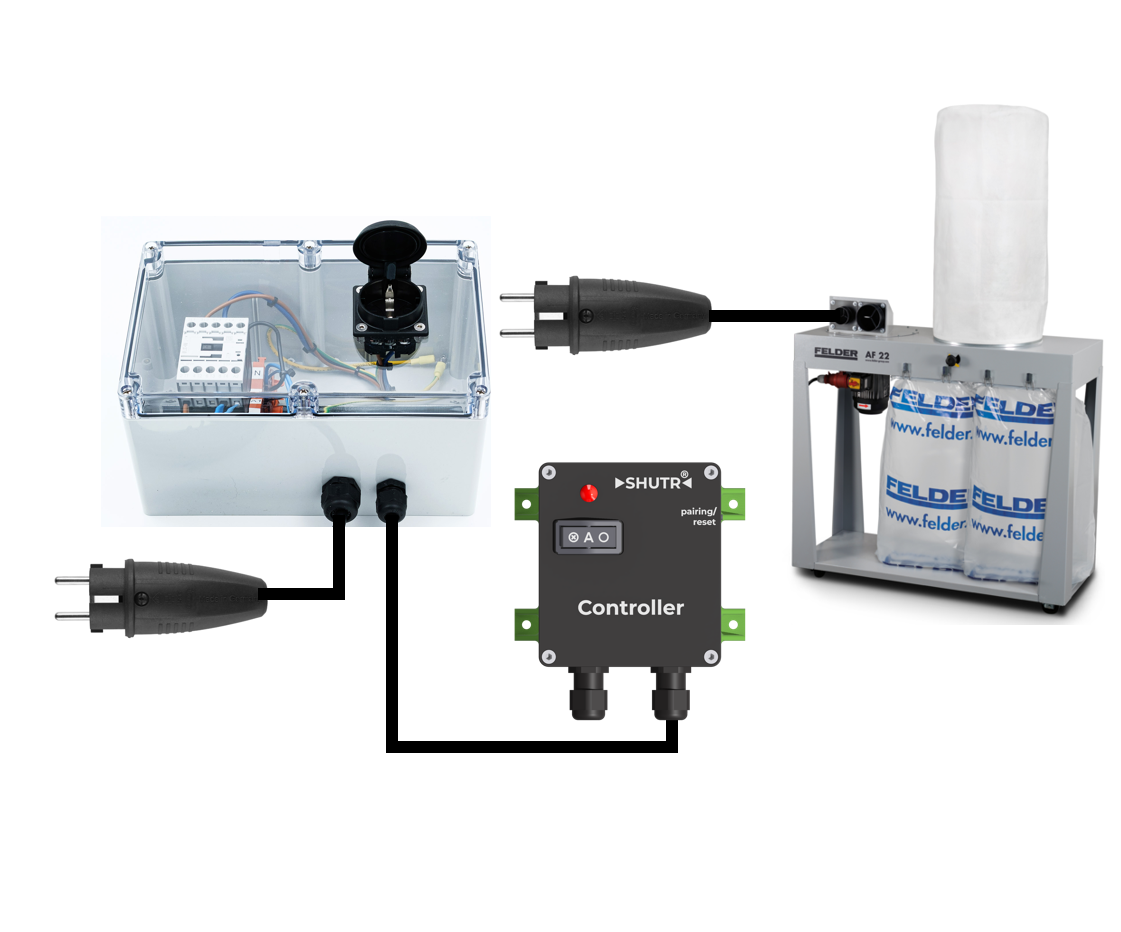

Switch box application

Use the Switch box when your dust collector has no magnetic switch, or no facility to switch it on with a potential free contact.

Plug your dust collector in the Switch box and the Switch box plugs into the outlet.

Switch box 1-phase specifications

  • Suitable for switching 230V AC, 16 A
  • Maximum load 3.6 kW
  • Switches L1 and N (neutral)
  • Coil 230V AC
  • MTBF 10,000,000 switch actions
  • Usage category: AC-3 , normal induction motors
  • Working temperature -25°C -to 40 °C
  • CE Compliant
  • Housing IP54
